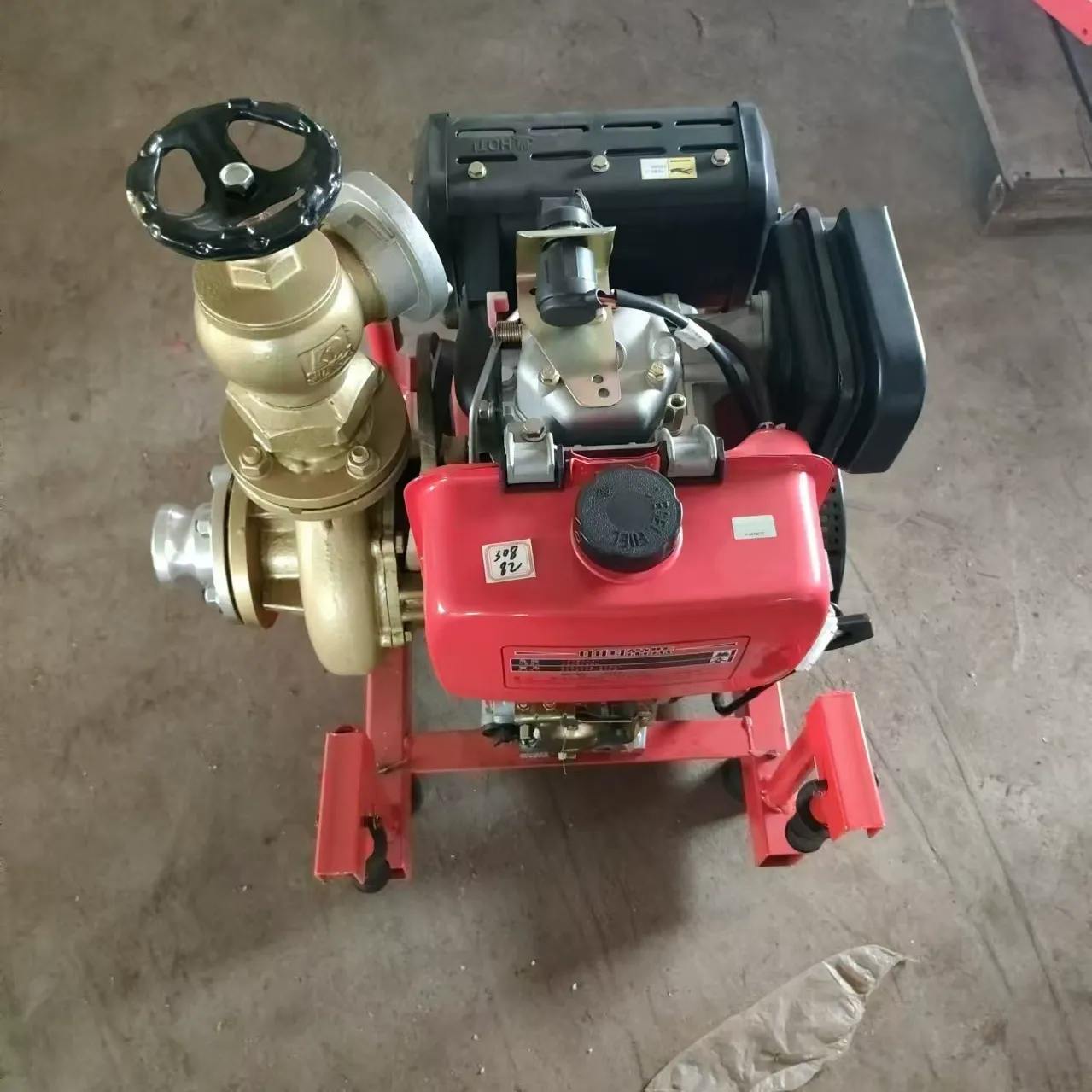

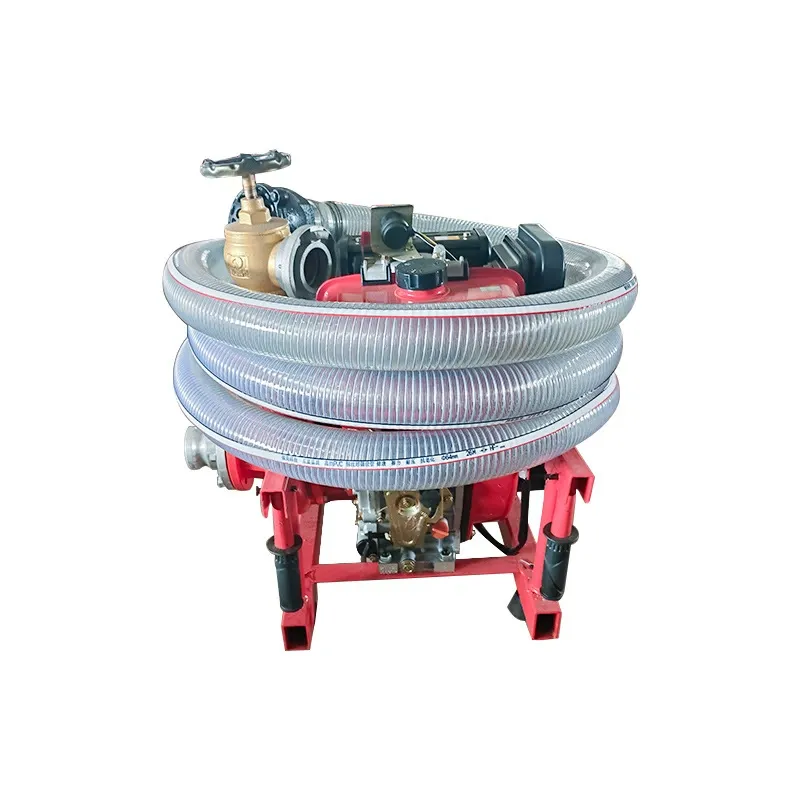

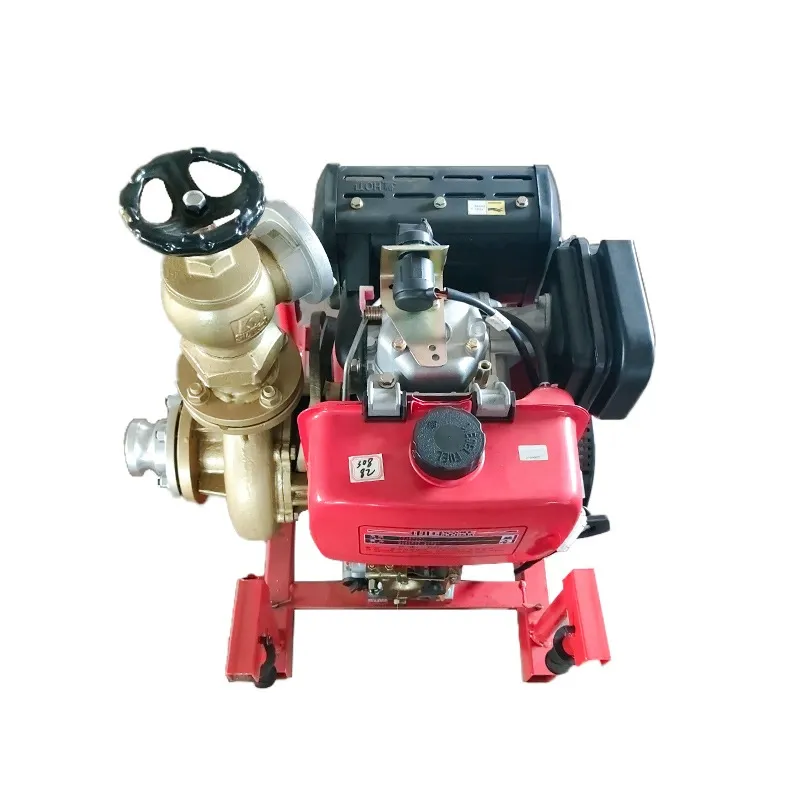

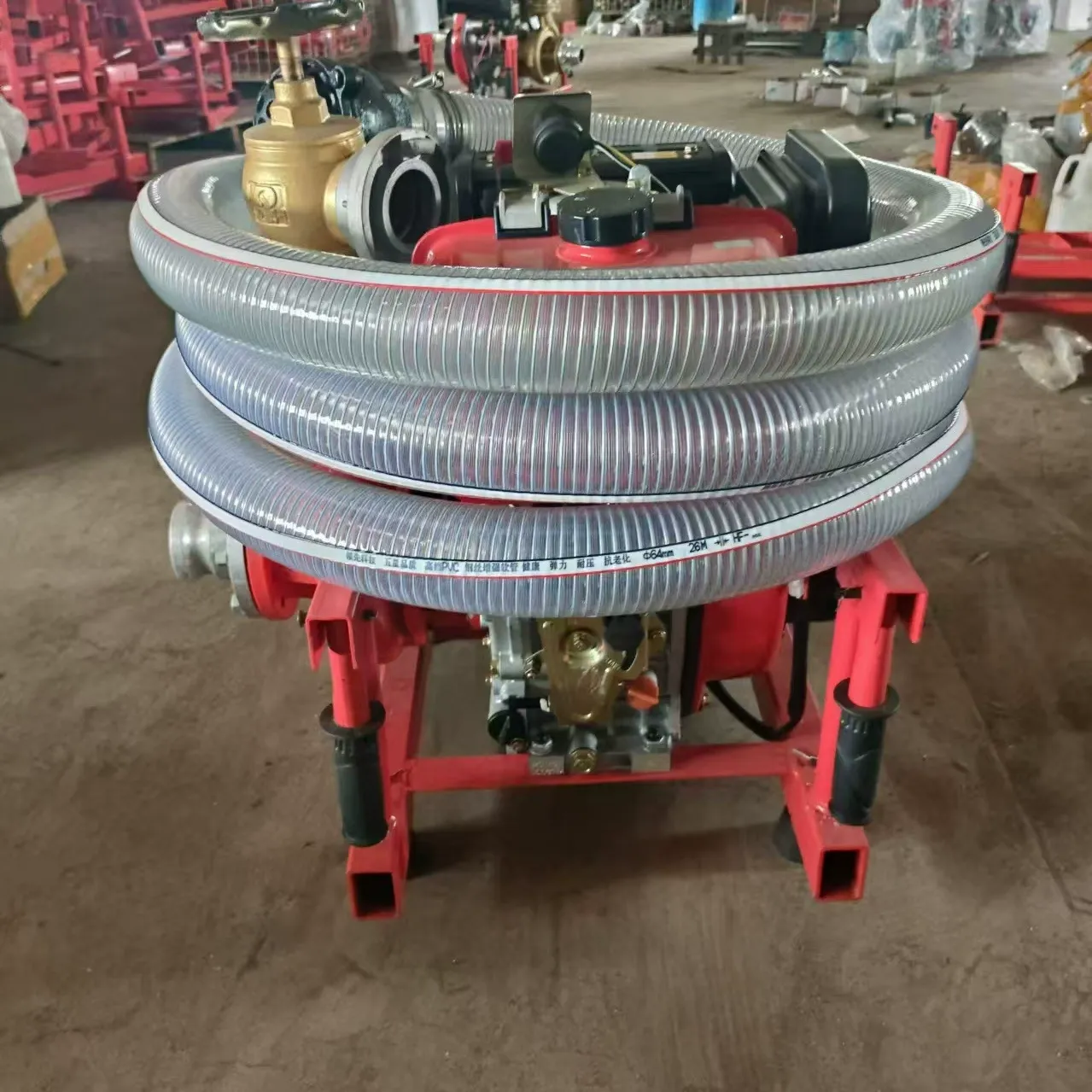

Portable Marine Diesel Emergency Fire Pump – Efficient CCS Approved

The CWY Series Marine Diesel Emergency Fire Pump is an essential safety asset specifically engineered to provide critical firefighting capabilities and rapid emergency drainage aboard various marine vessels. Built to meet stringent international maritime safety regulations, this pump series comes with options for prestigious marine survey certifications, including CCS, ZC, and ZY. Its primary value centers on its lightweight, compact configuration and mobile structure, allowing for rapid deployment by crew members during critical onboard emergencies when conventional power grids fail.

Engineered for absolute reliability, the CWY pump is powered by a high-performance, air-cooled diesel engine (available in 178F or 186F models) with options for both manual recoil and convenient electric starting. The heavy-duty pump casing can be configured in standard cast iron or premium corrosion-resistant copper alloy, guaranteeing excellent structural longevity against harsh, abrasive saltwater environments. Boasting an impressive suction lift of up to 7 meters and a rapid priming mechanism that ensures water discharge within 35 seconds, it takes swift action when every second counts.

The user experience is optimized for emergency scenarios; its integrated protective frame guards the engine while doubling as an ergonomic handling structure for seamless transport across tight corridors and ship decks. Additionally, its optimized fuel efficiency allows for up to 3.7 hours of continuous independent operation on a single tank. From routine bilge clearance to emergency offshore firefighting, this standalone diesel unit delivers a high-flow, high-pressure output that serves as a dependable safeguard for cargo ships, commercial fishing vessels, and marine platforms.

---

Key Features

• RAPID SELF-PRIMING: Achieves full water discharge in less than 35 seconds with an advanced suction lift reaching up to 7 meters for immediate emergency response.

• CORROSION-RESISTANT METALS: Offered in robust cast iron or marine-grade copper/bronze alloys to safely withstand continuous exposure to highly corrosive seawater.

• HIGH MOBILITY DESIGN: Constructed with a compact, lightweight framework and integrated skid handles to allow quick, flexible manual movement across ship decks.

• MARITIME CERTIFIED OPTIONS: Fully compliant with vessel safety codes, offering models verified by CCS (China Classification Society), ZC, and ZY classification registries.

• DEPENDABLE DUAL START: Equipped with a reliable manual recoil pull-start alongside an optional electric key-start system to ensure seamless operation under any disaster scenario.

---

Applications

• Emergency Onboard Firefighting: Provides an instant, high-pressure water supply to suppress unexpected fires across cargo holds, engine rooms, and decks.

• Vessel Bilge & Ballast Drainage: Efficiently manages unexpected hull breaching, emergency water accumulation, and routine bilge clearing for commercial vessels.

• Offshore Platform Safeguards: Serves as a standalone, non-electric backup pumping setup for open-sea marine platforms, docks, and coastal facilities.

• Port & Yard Disaster Control: Delivers high-capacity drainage and auxiliary firefighting capabilities for shipyards and marine ports during severe weather events.

---

Specifications

Parameter / Feature	Model: 65CWY-30	Model: 65CWY-40
Rated Flow Rate	25 m³/h	30 m³/h
Rated Head (Lift)	30 m	40 m
Rotational Speed	3500 r/min	3500 r/min
Suction Lift Height	6 – 7 m	6 – 7 m
Water Priming Time	≤ 35 s	≤ 35 s
Net Weight (Recoil / Electric)	80 kg / 90 kg	105 kg / 115 kg
Diesel Engine Power	4 kW (Matched 178F)	6 kW (Matched 186F)
Inlet / Outlet Diameter	65 mm / 50 mm	65 mm / 50 mm
Continuous Running Time	3.7 hours	3.5 hours
Fuel Consumption Rate	285 g/kW·h	280 g/kW·h
Cooling / Base Type	Air-Cooled / Mobile or Fixed	Air-Cooled / Mobile or Fixed

---

Extra Sections

System Advantages:

• Total Power Independence: Operating entirely on its own diesel engine, this pump functions completely independent of the vessel’s primary generator or electrical grid, making it an foolproof fallback during total power blackouts.

• Simplified Maintenance: The straightforward horizontal layout and air-cooled architecture eliminate the need for complex liquid cooling lines, allowing for hassle-free on-site inspection and rapid component servicing.

Certifications & Compliance:

• Formally approved for international and domestic maritime routes under CCS, ZC, and ZY classification inspections.
