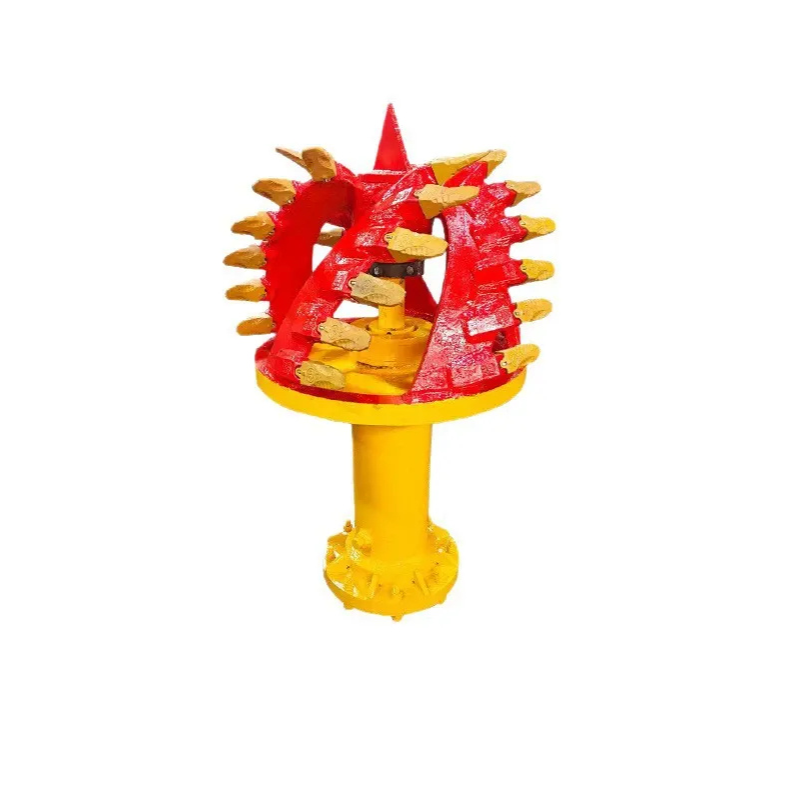

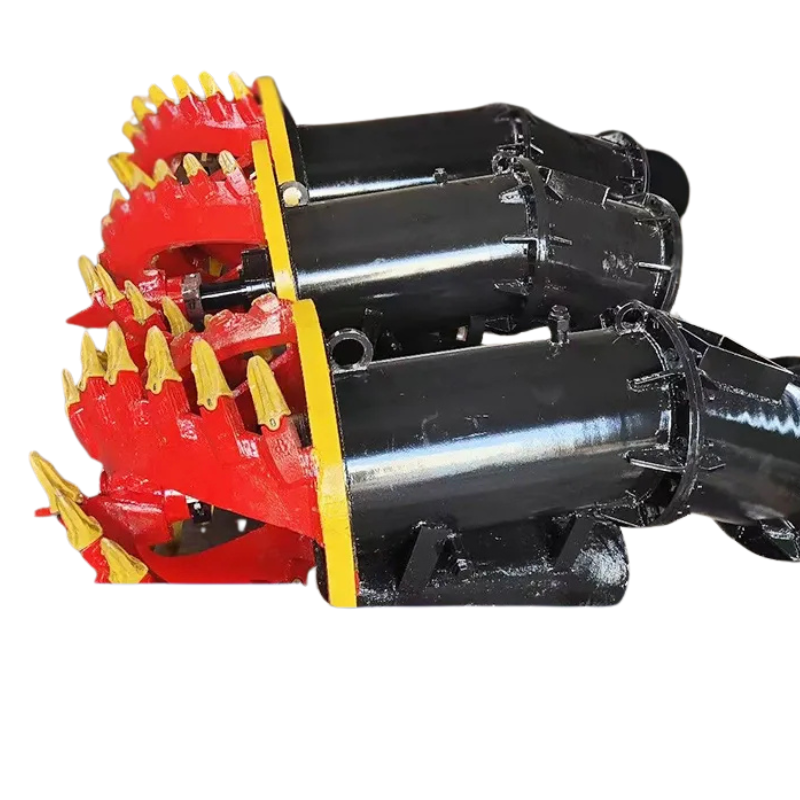

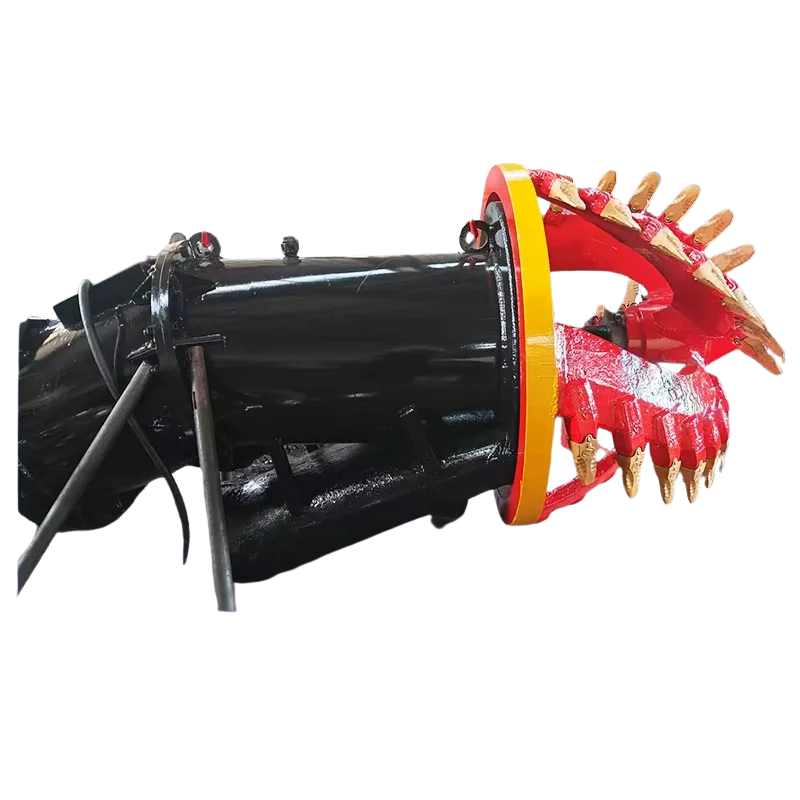

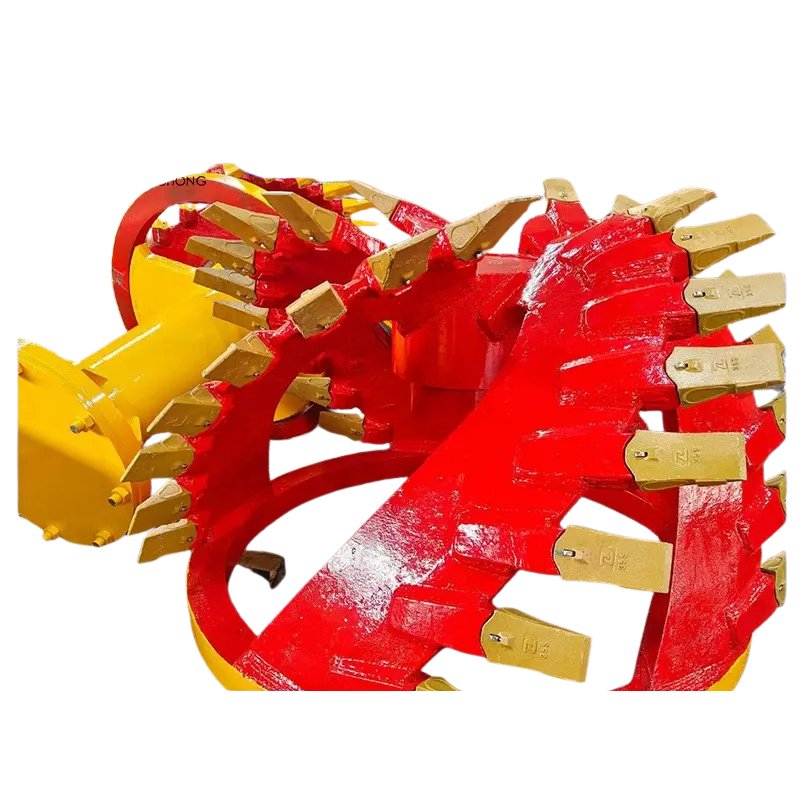

The DT Series Dredger Cutter Head is engineered to deliver reliable excavation and dredging performance for rivers, mining sites, and construction projects. Manufactured from high‑strength carbon steel, it provides durability, wear resistance, and long service life even under demanding conditions.
Available in models ranging from DT600 to DT2000, the cutter head features spiral blade arrangements that efficiently cut through sand, gravel, and rock while guiding slurry toward the suction inlet. Its hydraulic or mechanical drive options ensure adaptability to different dredging systems. With crushing teeth designed for strong breaking power, the cutter head is suitable for multiple soil types and rock formations.
Customizable specifications allow integration with dredging vessels of various capacities, with power requirements from 20 kW to 350 kW. Factory‑direct supply guarantees competitive pricing, customization options, and professional support, making this cutter head a cost‑effective solution for global customers seeking dependable dredging equipment.
Key Features
- DURABLE MATERIAL – Carbon steel construction ensures strength and long service life.
- STRONG CRUSHING POWER – Heavy‑duty teeth adapt to multiple soil and rock types.
- SPIRAL BLADE DESIGN – Guides slurry efficiently toward suction inlet.
- CUSTOMIZATION AVAILABLE – Sizes from Φ600 to Φ2000 with tailored specifications.
- EASY INTEGRATION – Hydraulic or mechanical drive options for different dredging systems.
Applications
- River dredging and channel clearing
- Mining and quarry excavation
- Construction and building material industries
- Water conservancy and hydropower engineering
- Concrete mixing stations and sand processing plants
Specifications
| Model | Cutter Size | Suction Inlet | Power Requirement | Drive Type |
|---|---|---|---|---|
| DT600 | Φ600 mm | 100 mm | 20–30 kW | Hydraulic/Mechanical |
| DT800 | Φ800 mm | 150 mm | 30–50 kW | Hydraulic/Mechanical |
| DT1000 | Φ1000 mm | 200 mm | 50–80 kW | Hydraulic/Mechanical |
| DT1200 | Φ1200 mm | 250 mm | 60–100 kW | Hydraulic |
| DT1400 | Φ1400 mm | 300 mm | 100–150 kW | Hydraulic |
| DT1600 | Φ1600 mm | 350 mm | 150–200 kW | Hydraulic |
| DT1800 | Φ1800 mm | 400 mm | 200–250 kW | Hydraulic |
| DT2000 | Φ2000 mm | 450–500 mm | 250–350 kW | Hydraulic |
Extra Sections
Functions
- Breaks soil and rock for dredging operations
- Guides slurry flow for efficient suction
Advantages
- Long service life with minimal maintenance
- Adaptable to multiple dredging environments
- Factory‑direct supply ensures cost savings
